Giantz 220 Amp Inverter Welder MMA MIG DC Gas Gasless Welding Machine Portable

Giantz 220 Amp Inverter Welder MMA MIG DC Gas Gasless Welding Machine Portable

The Giantz Portable Welder offers professional quality MIG/MAG/TIG/MMA welding with results that matter.

It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration, and a smooth welded finish. The machine can handle an array of electrodes and rod sizes. The output current is adjustable between 20A and 220A to produce flawless results with all kinds of metals including mild steel, stainless steel, carbon steel, and even sheet metal. The advanced cooling system with its large fan and radiator also ensures that heat is dissipated easily for better welding performance and durability. Operating the machine is also enhanced with the digital display and user-friendly controls.

Not least, safety is never taken for granted as the machine is protected from overloading current, overheating, and dust and water protection. The compact machine is lightweight for easy handling and comes with a full range of accessories for hassle-free welding.

NOTE: This item comes with a 15A plug and requires a current converter adaptor for use with 10A sockets.

Features:

🔹 Multifunction MIG/MAG/TIG/MMA Welder
🔹 Outstanding current range
🔹 Super stable arc force and post-flow control
🔹 Compact and lightweight
🔹 IGBT inverter technology
🔹 Maximum 1.0mm wire spool
🔹 Super stable DC inverter technology
🔹 Current stabilisation and auto increase
🔹 Industry-standard DIN sockets
🔹 Outstanding 30,000 MTPF hours of cooling
🔹 Overheating, over current, and over/under voltage protection
🔹 Works with a range of rod sizes
🔹 SAA, EMC, CE, and C-Tick certified

Specifications:

🔹 Power Voltage: Single Phase 220V ±15%, 50Hz
🔹 Power Plug: 15A AU Standard
🔹 Input capacity: 7.5KVa
🔹 Output current range: 20A – 220A
🔹 Duty Cycle: 35% @ 220A, 60% @ 170A
🔹 Efficiency: 85%
🔹 Insulation class: F
🔹 Shell protection grade: IP21
🔹 TIG and MMA connections: Quick-connect brass fittings
🔹 MIG torch connection: Hardwired
🔹 Max rated input: 15Amp (Require 15Amp Socket)
🔹 Wire spool diameter: 0.8mm- 1.0mm
🔹 Spool capacity: Takes Up to 5Kgs Spools from 0.8 - 1.0mm
🔹 Welding electrodes: Up to 4.0mm
🔹 MIG touch length: 3m
🔹 MMA electrode cable length: 1.8m
🔹 Earth clamp cable length: 1.2m
🔹 TIG torch cable length: 4m
🔹 Power cord length: 1.8m
🔹 Generator recommended: 8kVA
🔹 Dimensions: 42cm x 18.5cm x 34cm
🔹 Product weight: 11kg

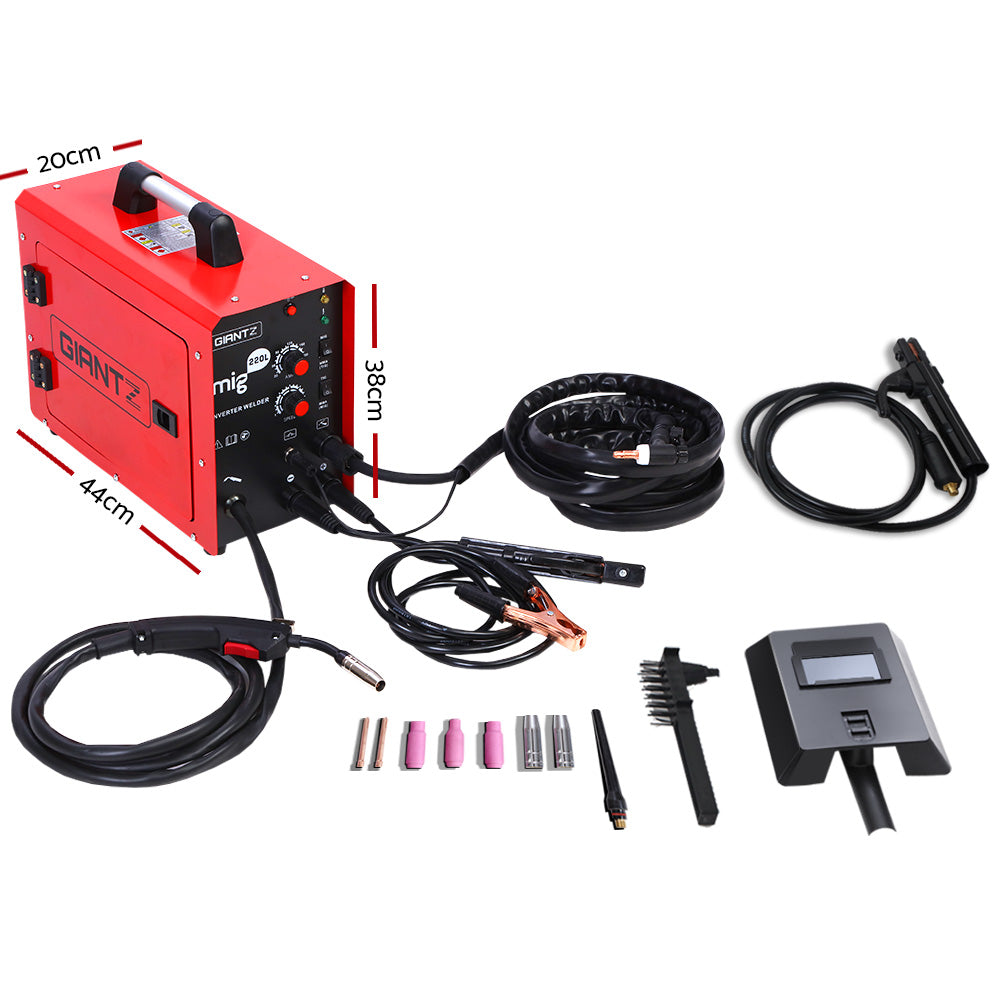

Product Contents:

🔹 GIANTZ Inverter Welder x 1
🔹 MIG torch x 1
🔹 TIG torch Lead x 1
🔹 Electrode Holder Lead x 1
🔹 Earth Clamp Lead x 1
🔹 Welding Mask
🔹 Packing Bag for Touch Lead x 1
🔹 Collet x 1
🔹 Gas Nozzle x 1
🔹 Stubby Ceramic Nozzle x 1
🔹 Long Back Cap x 1
🔹 Wire Brush x 1
🔹 User Manual x 1

Please note: Delivery is not available to postcodes 4216 and 4275
